6.3mm Positioning PCB Tab Terminal

6.3mm Positioning PCB Tab Terminal

5 week ago

7 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures PT250‑X series 250 type 6.3 positioning PCB tab terminals to achieve reliable mechanical fixing and electrical conduction for 1.6mm thickness printed circuit boards, complying with specified PCB hole reference dimensions and unified default dimensional tolerance of plus or minus 0.3mm to guarantee stable press fit installation onto target PCB boards. This PCB insert tab is built of brass base material with full tin plated surface finish, supports multiple model variants such as PT250‑X‑3 and PT250‑A‑5 and comes in standard packing quantity of 5000 pieces per unit. This robust metal tab terminal is widely deployed in liquid crystal display modules, digital cameras, communication hardware, industrial control panels, digital household appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision measuring instruments requiring firm board mounted electrical connection. Operators should adjust PCB opening sizes according to actual application conditions, perform correct press fit mounting and avoid excessive pressing force to prevent tab bending or PCB board damage, and store finished terminals in dry sealed packages to avoid tin plating oxidation. Unlike competitors outsourcing metal stamping and surface plating Antenk runs complete in‑house production workflow covering self‑developed precision metal mold fabrication, brass material high speed stamping and tin electroplating together with comprehensive laboratory dimensional and surface reliability inspection, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH and RoHS rules. We own more than one hundred eighty metal terminal molds, provide custom dimension options, deliver round‑the‑clock professional engineering support, and over seventy percent of our PCB terminal products are exported globally supported by ANTENK brand and consistent stable mass‑production quality.

1. Tin-Plated Brass PCB Tab delivers stable electrical conductivity and good anti‑oxidation performance for press‑fit circuit board connection scenarios.

2. 250-Type Positioning Terminal ensures accurate alignment and firm mechanical locking during assembly onto corresponding PCB holes.

3. 1.6mm Board-Mount Tab fits perfectly for 1.6mm thickness printed circuit boards to realize reliable board‑mount electrical interconnection.

Detailed Specifications ：

1. Basic Information

1.1 Product Name: PCB Tab

1.2 Type: 250 (6.3) positioning type

1.3 Applicable PCB Thickness: 1.6mm

1.4 Standard Packing Quantity: 5000 pieces

2. Material & Plating Options

2.1 Base Material: Brass

2.2 Material Thickness: 0.8mm

2.3 Available Plating: Tin, Ni‑Tin, Silver‑plating, Nickel, Matte tin

3. Dimensional Standards (Unit: mm)

3.1 Key Dimensions: 6.35±0.1, 7.92±0.3, 4.5±0.3, 5.08±0.05

3.2 PCB mounting hole reference dimension: Ø1.4±0.05

3.3 General default tolerance follows drawing specification

3.4 PCB hole sizes are for reference only

4. Environmental & Compliance

4.1 Comply with RoHS environmental requirements

5. Application Scenarios

5.1 Liquid crystal display modules, digital cameras

5.2 Communication hardware, industrial control panels

5.3 Digital household appliances, electronic toys

5.4 Computer peripherals, automotive electronic assemblies

5.5 Precision measuring instruments

6. Operation & Storage Precautions

6.1 Adjust PCB opening dimensions according to actual comprehensive application conditions

6.2 Apply proper pressure during press‑fit installation, avoid excessive force to prevent tab deformation or PCB damage

6.3 Store finished PCB tabs in dry sealed packages to prevent plating layer oxidation and contamination

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

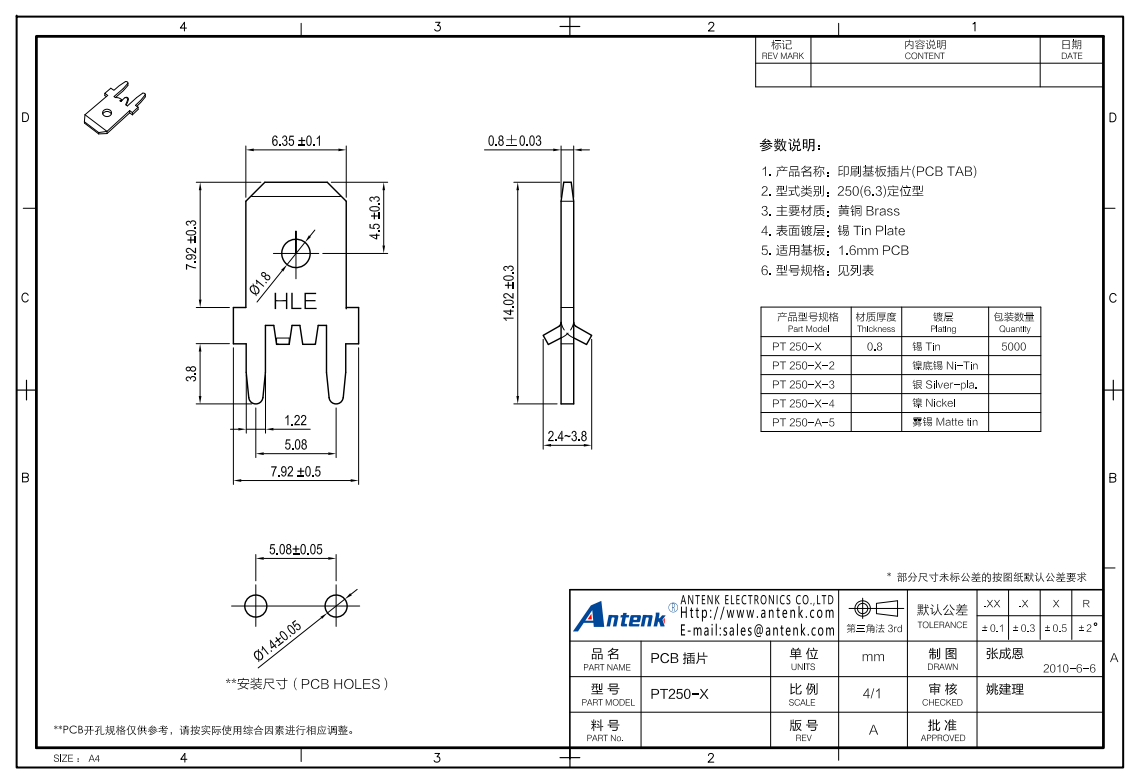

Product Drawing：
