1、Product Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the AT2500V series Plug-in Terminal Block Close Vertical Pitch 5.0/5.08 is a vertical pluggable wiring connector designed for space-saving vertical PCB mounting. All production strictly complies with engineering drawing dimensional standards. The housing adopts PA66 filled with 23 percent glass fiber, reaching UL94V-0 flame retardant grade, delivering stable insulation and high temperature resistance during soldering and long-term continuous operation. Conductive pins are brass with full tin plating, rated for 300V voltage and 12A current for reliable power and signal transmission. This series supports 2 to 24 poles and two vertical height options, with multiple insulator colors for circuit classification. Our complete manufacturing process includes in-house mold development, high-temperature injection molding, brass terminal high-speed stamping, anti-corrosion tin electroplating, automatic pin assembly and full dimensional inspection. Imported Japanese and Taiwanese production machines ensure consistent pitch precision and stable plug retention force. All raw materials conform to EU RoHS and REACH environmental requirements.
This vertical plug-in terminal block features simple assembly operations. Users strip wire insulation to proper length, fix wires inside matched female plug housings, then vertically insert the PCB-mounted male terminal block to form detachable electrical circuits. Its vertical close layout effectively reduces horizontal occupation on circuit boards, ideal for compact miniature electronic equipment. The product is widely used in industrial control modules, small switching power supplies, household control equipment, communication distribution units and precision testing instruments. During use, operators shall not exceed the rated 12A current to avoid overheating damage. Violent plugging and unplugging should be avoided to prevent housing cracking and pin deformation. Unused terminal blocks need dry sealed storage to protect tin plating from oxidation. Most specifications obtain UL certification numbered E472792, and our factory holds ISO9001, ISO14001 and IATF16949 quality certifications.
Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of metal stamping molds for this dual pitch vertical terminal block series. Compared with other terminal block manufacturers, we provide customizable pole numbers, vertical pin heights, housing colors and plating thickness without extra tooling fees for standard specifications. Our 10000 square meter production base employs 250 professional staff and is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, supporting stable mass production and on-time shipment for overseas export orders. As a brand certified as Guangdong Famous Trademark, more than 70 percent of our connectors and terminal blocks are exported to global markets across Europe, America, Southeast Asia and South America.
We implement full-process strict quality inspection for each batch of vertical plug-in terminal blocks, including incoming raw material inspection, real-time monitoring for injection molding, stamping and electroplating, finished dielectric strength testing, plug retention force testing and 48-hour salt spray testing. Every finished product supports complete lot traceability for quality tracking. Rigorous multi-stage inspection greatly improves long-term connection stability and anti-vibration capability, reducing hidden circuit risks caused by poor contact. We offer free samples, 2D and 3D CAD drawings and 24-hour online technical support for global clients, establishing long-term trusted cooperative partnerships with electronic manufacturers worldwide.
Vertical Dual Pitch Terminal Blocks offer space-efficient vertical PCB mounting solutions for compact electronic equipment layouts.
Tin Plated Brass Contacts deliver stable electrical conductivity and reliable anti-corrosion performance for plug-in terminal blocks.
Miniature PCB Wire Connectors suit limited internal space and satisfy wiring demands of various small electronic devices.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

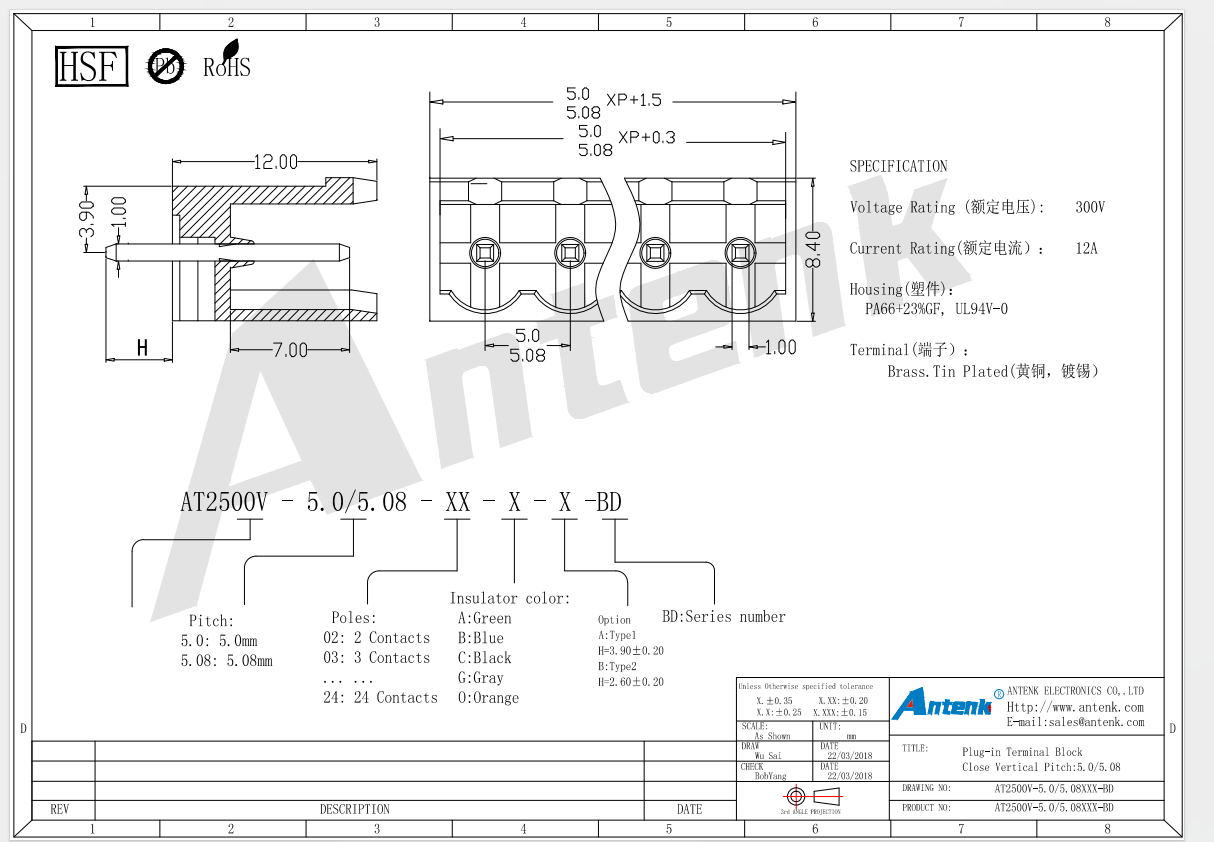

3、Product Drawing
